Product Description

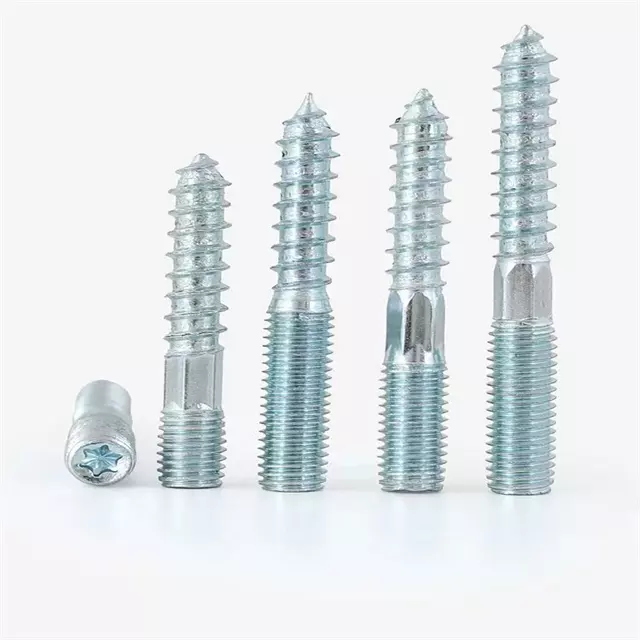

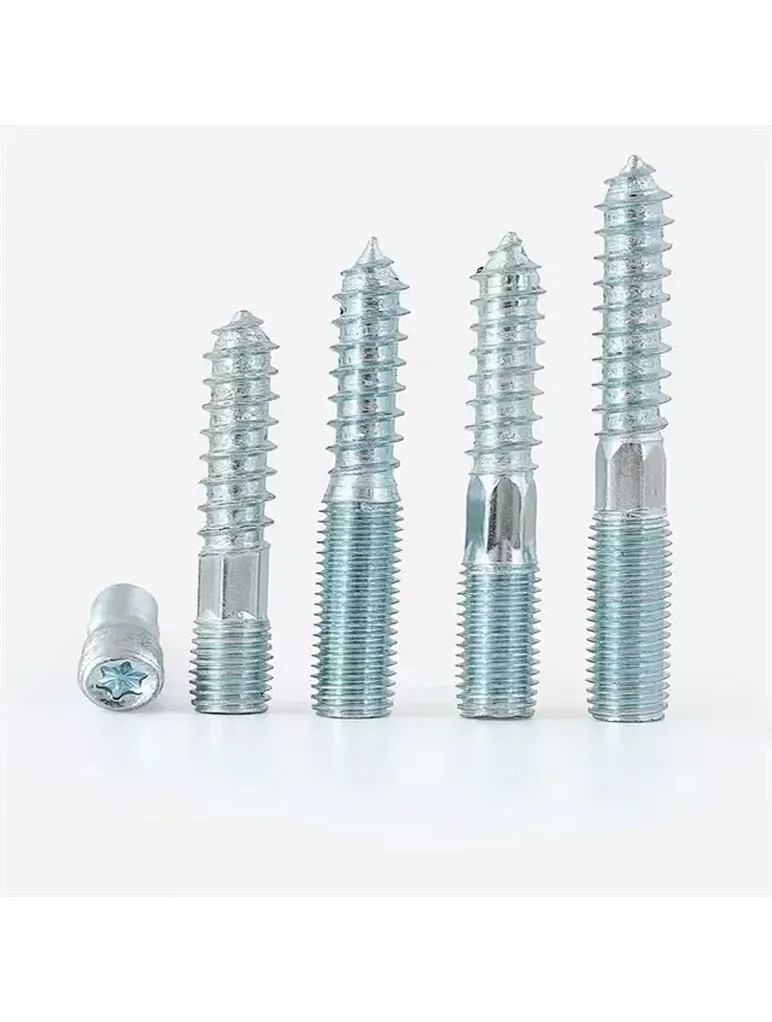

Double Sided Head Hanger Screw

Double Sided Head Hanger Screw are studs used to suspend objects from or attach items to wood. Like a typical stud, they are headless, double-ended bolts that have threads at each end-lag threads to screw into wood but, at the other end, machine screw threads to accept a nut or thread into an internally threaded (tapped) hole. Coupling nuts and threaded rod are often used with hanger bolts to suspend electrical conduits, junction/pull boxes, fixtures and sheet metal. The furniture industry uses them with corner brackets, clinch nut plates, tee nuts and whenever wood and machine screw threads are needed in a single fastener. Double Sided Head Hanger Screw are also known as: couch bolts, headless hanger bolts, hanger screws.Being headless, a little ingenuity is needed to drive them into wood-see below for a few installation tips.

Threads are standard right-hand at both ends. The machine screw threads are Unified inch coarse series (UNC, Unified National Coarse) and the lag threaded portion has coarse, widely spaced threads that end in a tapered blunt point designed to start threading into a properly sized pilot hole. Plain center style has an unthreaded body section; fully threaded types, also called closed center, do not have an unthreaded section.

Common sizes are 8-32, 10-24, 1/4-20, 5/16-18 and 3/8-16 and lengths range from 3/4"to 6". The number of threads per inch (32, 24, 20, etc.) refers to the machine screw threaded end. Measure length from end to end.

Double Sided Head Hanger Screw

Materials:	Carbon steel, Stainless steel
Size:	Customized as per detailed sizes or drawings
MOQ:	10000pcs above, depends on products or dimensions
Sample lead time:	3-7 working days mostly
Massive lead time:	20-25 working days
Trade terms:	EXW/FOB/CIF/CNF/FCA/DAP/DDP/DDU
Payment:	Alibaba online trade, T/T, Paypal,West Union,L/C etc
Package:	PE bags + brown carton + pallets or customized as demands

Double Sided Head Hanger Screw

Double Sided Head Hanger Screw

Double Sided Head Hanger Screw



Double Sided Head Hanger Screw

Double Sided Head Hanger Screw

Company Profile

Our company is an export company integrating design, development, production, sales and service,specialized in the production of series high-end building fastener. The company takes technology as the forerunner, continuously carries out technological innovation, and strictly follows the quality management system in production.
The mainly products of our company are Wedge Anchor,Sleeve Anchor,Bolt Anchors,Metal Frame Anchor,Chemical Anchor,Drop In Anchor,Ceiling Anchor,4Pcs Heavy Duty Anchor,Metal Hit Anchor, anchor bolt ,expansion anchor ,hex nut, clamp, washer and so on.
Our products have passed technical qualification certification and are exported to more than 50 countries and regions in East Asia,South-East Asia, Mid-East, Europe and so on. We are committed to providing quality products and perfect service to friends all over the world.

Double Sided Head Hanger Screw


Double Sided Head Hanger Screw​​​​​​​
Double Sided Head Hanger Screw​​​​​​​
Q: Are you trading company or manufacturing?
 A: We are manufacturer and exporter from China, our factory located at Handan City, Hebei Province,China.

Q: How long is your delivery time?
 A:Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

Q: Do you provide samples? Is it free or extra?
 A: Yes,we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?
 A: Payment<=1000USD, 100% in advance,payment>1000 USD, 30% T/T in advance, balance before shippment.

Double Sided Head Hanger Screw
