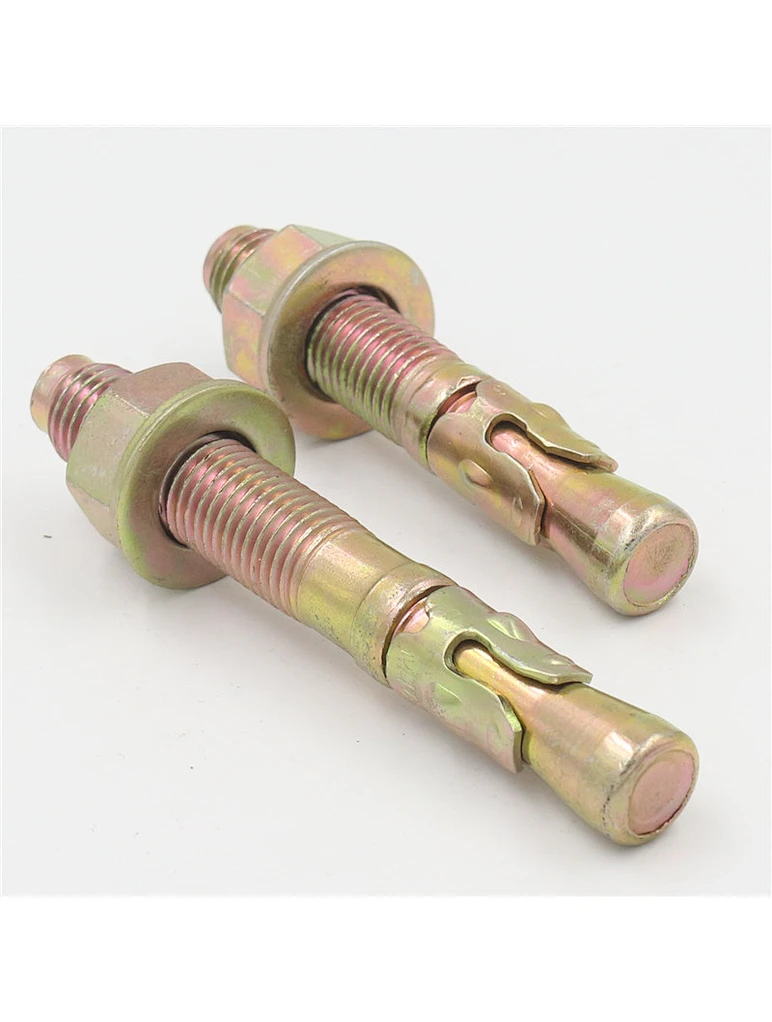

M6-M24 Yellow Zinc Wedge Anchor
M16*140
FOB, CIF
1 piece
250000piece / Week
Hebei, China
20Day
Wedge anchor also named " Through Bolt“， belongs to expansion bolt. It is widely used in construction.
Quantity
Overview
Brand Name: FUAO Fastener
SIZE: M6-M24 wedge anchor blue zinc, wedge anchor zinc plated ,wedge anchor blue zinc
Length: 40-400mm
Packing: Small white boxes+Brown carton+Pallet
Port: Tianjin,China
OEM service: YES
wedge anchor blue zinc
wedge anchor zinc plated
Product advantage:
1.The longer thread interval makes a variety of thickness of anchorage possible
2. Electro-galvanizing offers maximum bearing capacity in non-cracking concrete
3. Making full use of the intension of substrate, Flexible, can be used on the smaller surface or close to the edge(wedge anchor zinc plated ,wedge anchor blue zinc)
4. When the diameter of anchor is 8mm to 16mm or meeting steel bar during the installation, the depth of drilling hole can be decreased(wedge anchor zinc plated ,wedge anchor blue zinc)
5. Anti-seismic, anti-aging, high-temperature resistance, weather resistance, resistance to fracture.(wedge anchor zinc plated ,wedge anchor blue zinc)
Wedge Anchor | |||||
| Type A: wedge anchor(yellow or white zinc)(wedge anchor zinc plated) | |||||
| Type B: wedge anchor(A2 or A4)(wedge anchor zinc plated) | |||||
| Type C: wedge anchor(HDG or Dacromet) | |||||
| Type D: wedge anchor blue zinc | |||||
| All measurements in millimeters（mm） | |||||
| Size | Thread Length | Drilling Dia | Minimum Length of Embedment | Weight (kgs)/MPcs | Pull Out Load |
| 6x50 | 25 | 6 | 30 | 11 | 850 |
| 6x80 | 50 | 6 | 35 | 16 | |
| 6x100 | 60 | 6 | 35 | 19 | |
| 8×50 | 20 | 8 | 35 | 21.5 | 1150 |
| 8×70 | 40 | 8 | 40 | 29 | |
| 8×80 | 50 | 8 | 40 | 31 | |
| 8×100 | 60 | 8 | 40 | 37.5 | |
| 8×120 | 80 | 8 | 40 | 43 | |
| 10×60 | 25 | 10 | 40 | 42 | 1500 |
| 10×80 | 40 | 10 | 50 | 50.3 | |
| 10×100 | 60 | 10 | 50 | 60.7 | |
| 10×120 | 75 | 10 | 50 | 69.6 | |
| 10×150 | 100 | 10 | 50 | 82.7 | |
| 10×200 | 150 | 10 | 50 | 108.2 | |
| 12×80 | 35 | 12 | 50 | 76 | 2300 |
| 12×100 | 55 | 12 | 60 | 90.2 | |
| 12×120 | 75 | 12 | 60 | 104 | |
| 12×150 | 100 | 12 | 60 | 124.3 | |
| 12×200 | 150 | 12 | 60 | 159.5 | |
| 12×220 | 150 | 12 | 60 | 173.5 | |
| 16×100 | 50 | 16 | 70 | 169.5 | 3400 |
| 16×125 | 60 | 16 | 80 | 203.9 | |
| 16×150 | 85 | 16 | 80 | 233.8 | |
| 16×200 | 120 | 16 | 80 | 296 | |
| 16×300 | 150 | 16 | 80 | 420 | |
| 20×100 | 45 | 20 | 80 | 270 | 5400 |
| 20×150 | 80 | 20 | 100 | 376 | |
| 20×200 | 140 | 20 | 100 | 473 | |
| 20×300 | 150 | 20 | 100 | 680 | |
wedge anchor zinc plated
wedge anchor blue zinc
Application:
Wedge anchor is widely used in the construction field to fix in the concrete, steel structure, railings, curtain wall, doors, windows and so on
wedge anchor zinc plated
wedge anchor blue zinc
