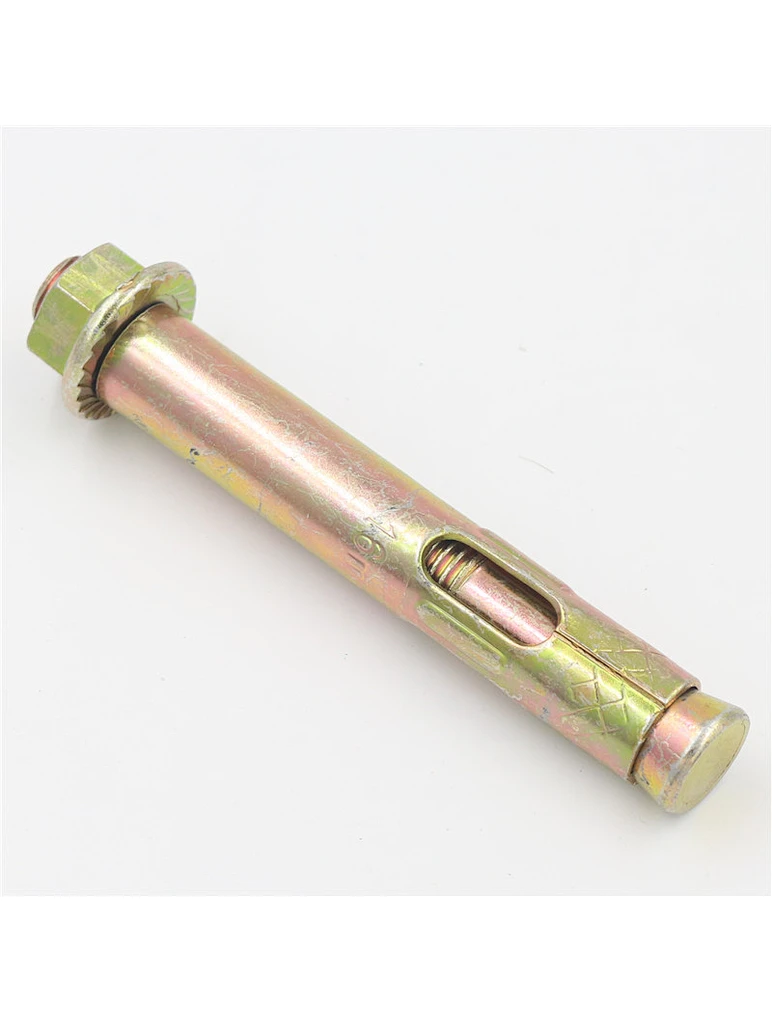

Yellow Zinc Sleeve Anchor With Flange Nut
price
US $2.00 - US $2.50 / piece
8*25--20*300
FOB Tianjin, CNF,CIF
1 piece
600 tonspiece / Month
Tianjin
20Day
Sleeve Anchor With Flange Nut Made In China
Quantity
sleeve anchor with flange nut
Sleeve Anchor, is a kind of light-duty anchors, used for transmission installation. While tightening the nut or bolt, the conical head of bolt is pulled in the expansion sleeve, making the expansion sleeve expanded and pressed against the wall of the drilling hole.The unique design, sleeve with holes, can shorten the length of bolt in axial direction and make the anchor pressed against the surface of concrete, while tightening the bolt, Sleeve Anchors include sleeve anchor with hex bolt, sleeve anchor with flflange nut. The types of anchor's head include O, L, C. The standards include Metric and ASTM. Our products are widely used in various fifields, Anti-aging, high-temperature resistance, weather resistance, resistance to fracture.
sleeve anchor with flange nut
Overview
Product name: sleeve anchor with flange nut,flange nut sleeve anchor
Finish: YELLOW ZINC
System of Measurement: Metric / BSW/UNC
Material: Carbon steel
Grade: 4.8
Place of Origin: Hebei, China
Brand Name: FUAO Fasteners
Technical data
Dia.X Length | Max. Fixture Thickness (mm) | Pull out Load (Kgs) |
M6.5X18 | 3 | 800 |
M6.5X25 | 4 | |
M6.5X36 | 8 | |
M6.5X56 | 26 | |
M6.5X75 | 45 | |
M8X40 | 8 | 1200 |
M8X65 | 35 | |
M8X85 | 55 | |
M10X40 | 6 | 1700 |
M10X50 | 12 | |
M10X60 | 15 | |
M10X75 | 27 | |
M10X100 | 62 | |
M12X60 | 15 | 2500 |
M12X75 | 27 | |
M12X100 | 52 | |
M12X120 | 70 | |
M12X130 | 80 | |
M16X65 | 20 | 3700 |
M16X110 | 65 | |
M16X145 | 100 | |
M20X75 | 25 | 5100 |
M20X107 | 57 | |
M20X151 | 101 |
sleeve anchor with flange nut
sleeve anchor with flange nut
sleeve anchor with flange nut
Packing: Bulk Package/Box+Carton+Pallet
Port: Tianjin China
