dyna bolt,sleeve anchors for brick,epoxy sleeve anchors
8*40-- 20*400
FOB Tianjin, CNF,CIF
1 piece
600 tonspiece / Month
Tianjin
20Day

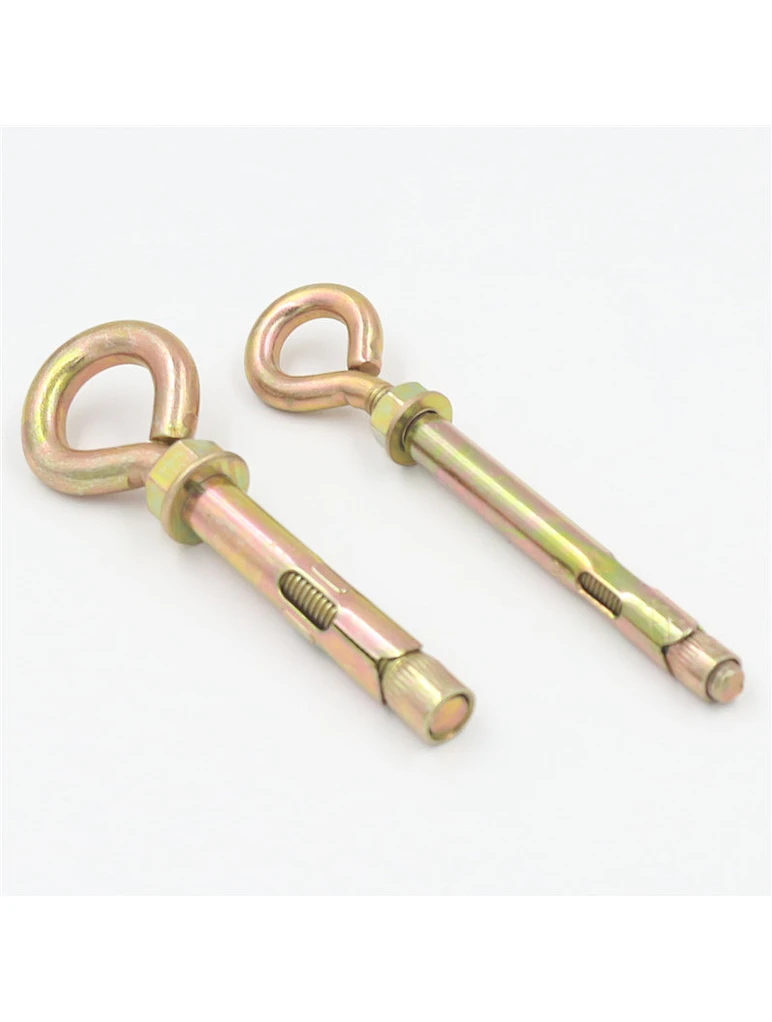

Eye Bolt Sleeve Anchor Made In China
Quantity

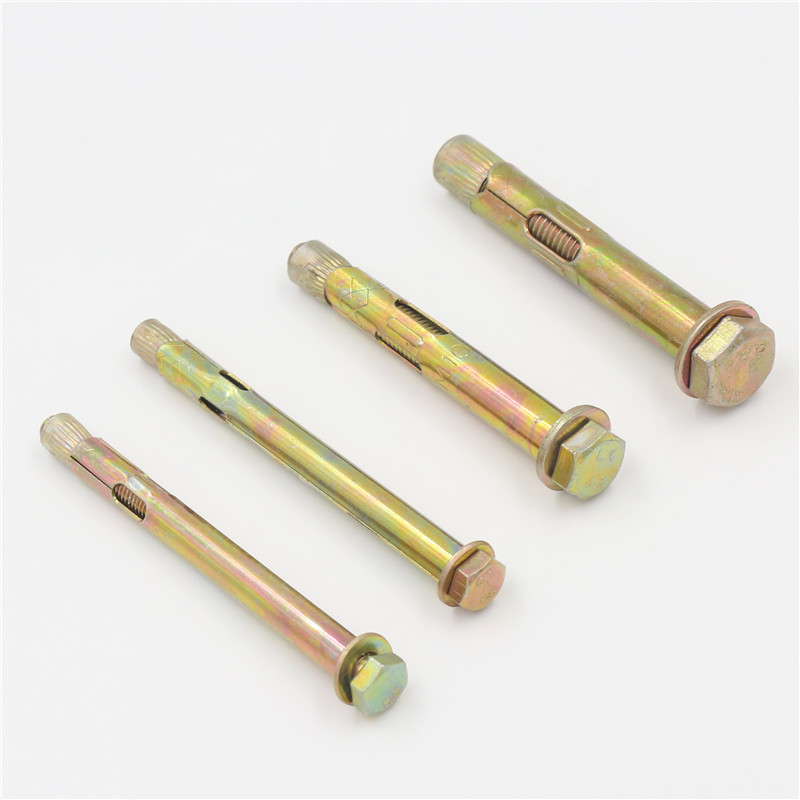

Sleeve anchors for brick
sleeve anchors for brick, is a kind of light-duty anchors, used for transmission installation,sleeve anchors for brick. While tightening the nut or bolt, the conical head of bolt is pulled in the expansion sleeve, making the expansion sleeve expanded and pressed against the wall of the drilling hole. The unique design, sleeve with holes, can shorten the length of bolt in axial direction and make the anchor pressed against the surface of concrete, while tightening the bolt, Sleeve Anchors include sleeve anchor with hex bolt, sleeve anchor with flflange nut. The types of anchor's head include O, L, C. The standards include Metric and ASTM. Our products are widely used in various fifields,
- Anti-aging, high-temperature resistance, weather resistance, resistance to fracture.
Overview
Product name: dyna bolt,sleeve anchors for brick,epoxy sleeve anchors,stainless steel sleeve anchors
Finish: YELLOW ZINC
System of Measurement: Metric / BSW/UNC
sleeve anchors for brick
Material: Carbon steel
Grade: 4.8
Place of Origin: Hebei, China
Brand Name: FUAO Fasteners sleeve anchor for brick
Technical data (Sleeve anchors for brick)
Dia.X Length | Max. Fixture Thickness (mm) | Pull out Load (Kgs) |
M6.5X18 | 3 | 800 |
M6.5X25 | 4 | |
M6.5X36 | 8 | |
M6.5X56 | 26 | |
M6.5X75 | 45 | |
M8X40 | 8 | 1200 |
M8X65 | 35 | |
M8X85 | 55 | |
M10X40 | 6 | 1700 |
M10X50 | 12 | |
M10X60 | 15 | |
M10X75 | 27 | |
M10X100 | 62 | |
M12X60 | 15 | 2500 |
M12X75 | 27 | |
M12X100 | 52 | |
M12X120 | 70 | |
M12X130 | 80 | |
M16X65 | 20 | 3700 |
M16X110 | 65 | |
M16X145 | 100 | |
M20X75 | 25 | 5100 |
M20X107 | 57 | |
M20X151 | 101 |
Packing: Bulk Package/Box+Carton+Pallet
sleeve anchors for brick
Port: Tianjin China
